| Model | DZ-ID1601-P1 |
| Distance Measured Range | 4" ~ 260' / 10cm ~ 80m |
| Distance Measurement Precision | ± 1/16" / 1.5mm (+distance x 0.0005) |
| Data Output Rate | ≧ 2 HZ ≤ |
| Laser Type | Class II |
| Laser Class | 635nm, < 1 mw |
| Indication Light | Red Laser |
| Battery | Lithium Battery 3.7V 400MAh |
| Charging Time | ≤ 3 Hours |
| Power | < 0.6 W |
| Storage Temperature | -20 °C -60 °C / -4 °F ~ 140 °F |
| Working Temperature | 0 °C ~ 40 °C / 32 °F ~ 104 °F |
| Storage Humidity | RH85% |
| Size Dimensions HxWxD | 2.76 x 1.81 x 0.91in / 70 x 46 x 23mm |
| Weight with Built-in Battery | 2.5oz / 58g |
| Battery Durability per Charge | Up to 1000 single measurements |
| Auto Laser Switch-off | After 20 sec |
| Auto Power Switch-off | After 15 min |
Certificates
FCC Certificate
Safety Laser Certificate

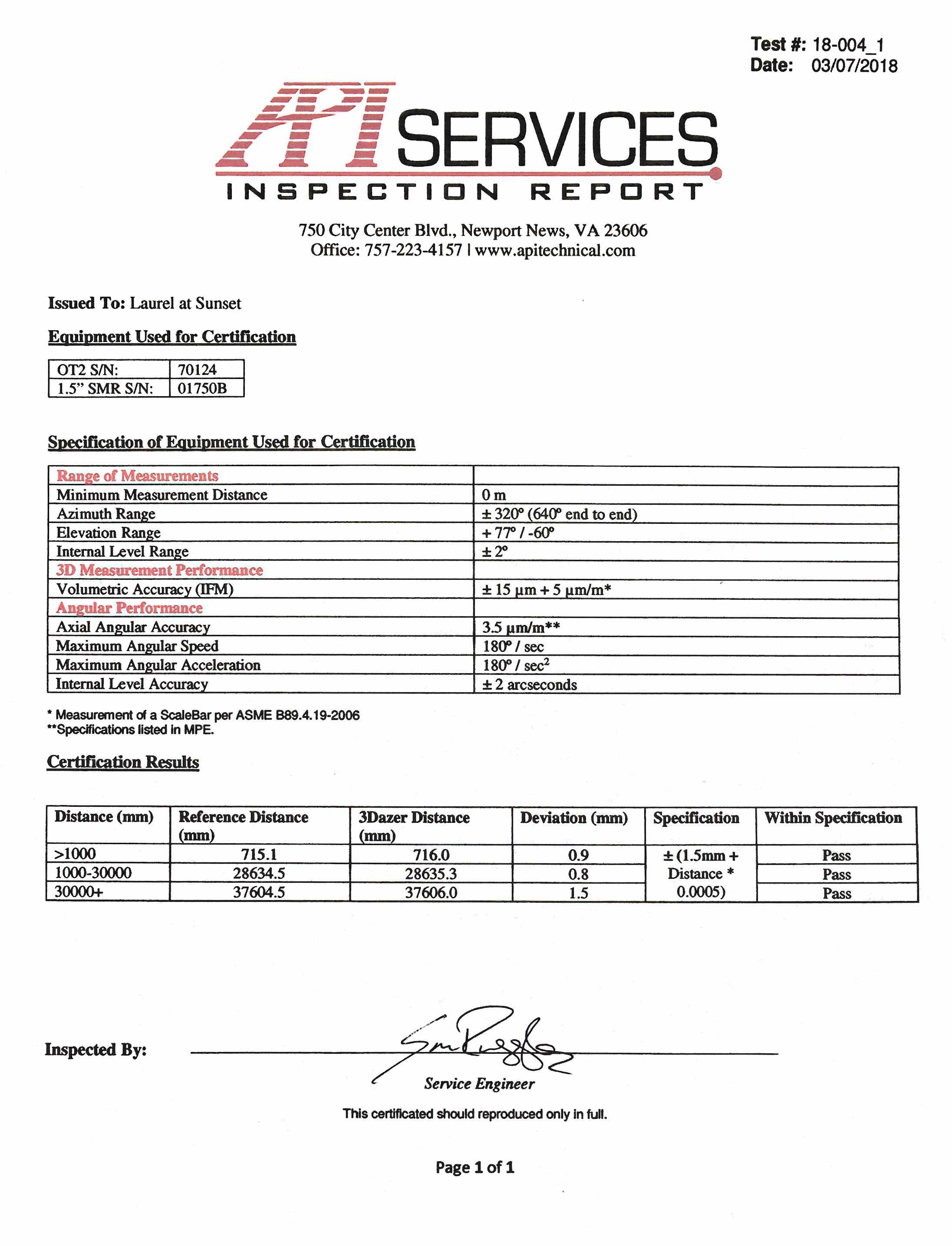

API Accuracy Certificate
Test Reports
FCC Test Report
Manual
User's Manual
